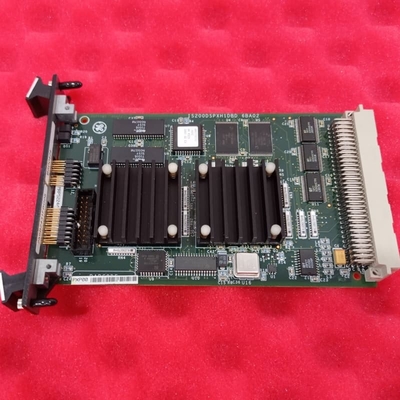

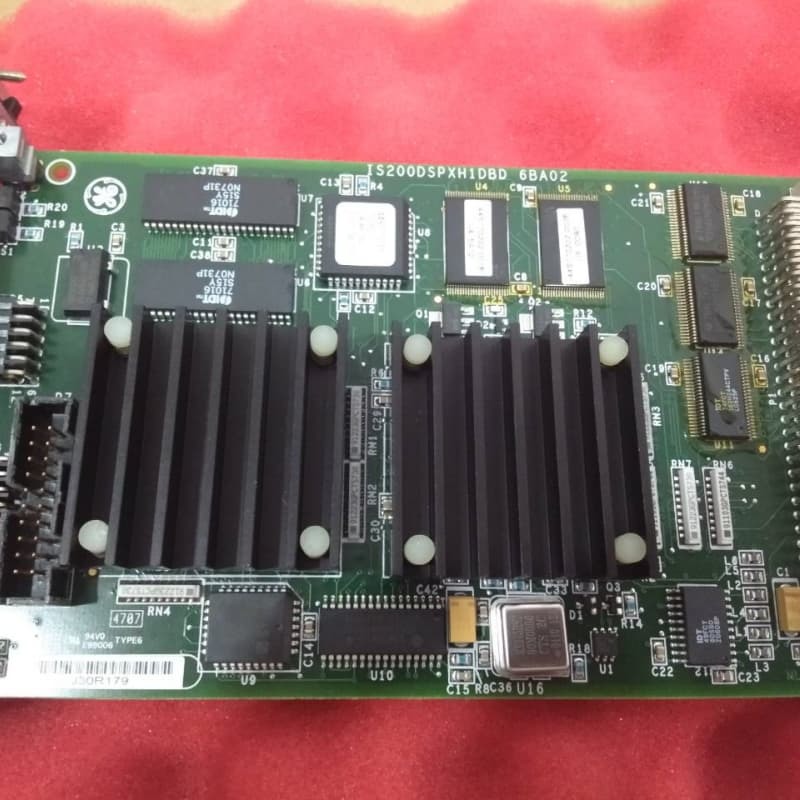

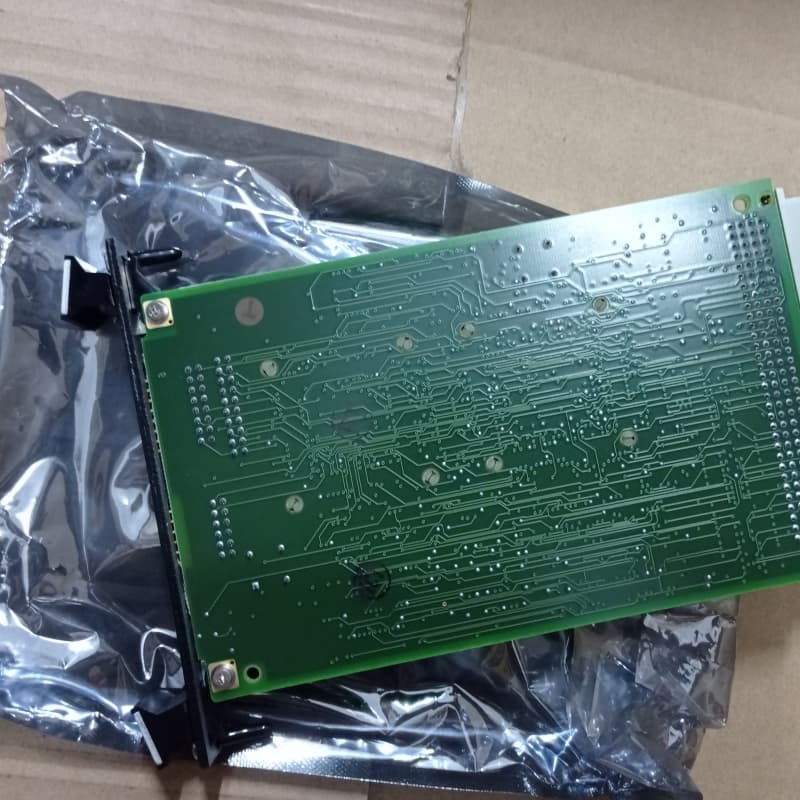

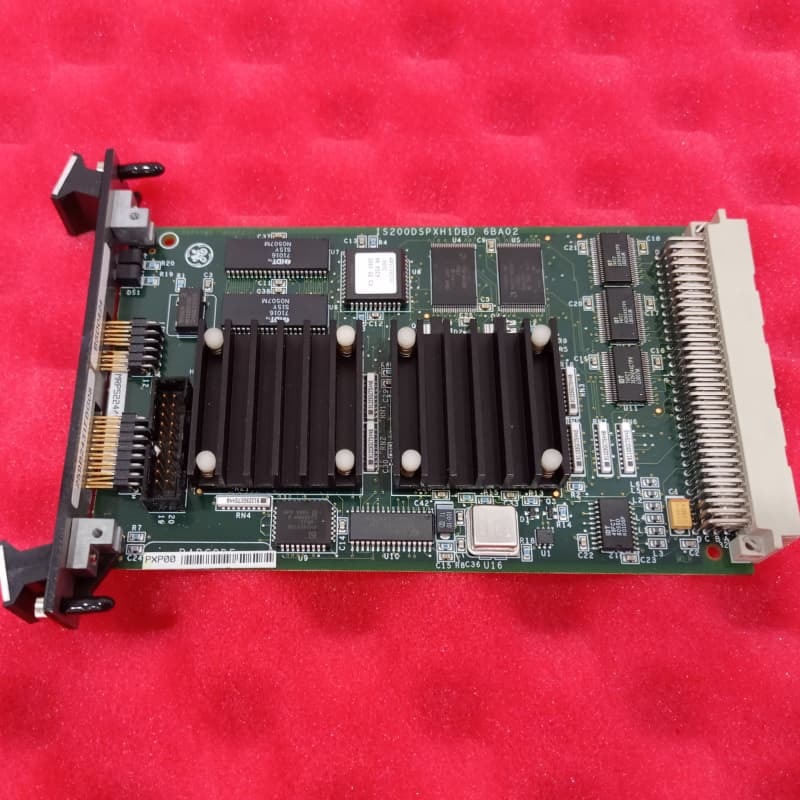

GE IS200DSPXH1BBD Mark VI Digital Signal Processor Control Board

Product Description:

The IS200DSPXH1BBD is a Digital Signal Processor (DSP) Control Board developed by General Electric, part of industrial control systems  Mark series. As a DSP-based board, it specializes in processing digital signals to manage and regulate industrial operations, in turbines, drives, or power systems.

Its core function involves real-time signal analysis, control algorithm execution, and coordination with other system components. Designed for reliability, it integrates into GE's control architecture, supporting precise operation through advanced digital signal processing capabilities. Though specific details vary, such boards typically enable efficient system monitoring, adjustment, and response, ensuring optimal performance in complex industrial environments.

Features:

1.Hardware Revisions & Coating: Features functional revision B, ISBus Revision One, group variation H, and conformal coating for protection.

2.I/O Connectors: Equipped with three connectors (P1, P5, P6):
P1: Backplane connector enabling memory mapping.
P5: DSP emulator port supporting emulation scanning and FLASH programming.
P6: Engineering monitor port connecting to the DSP synchronous serial port.

3.Installation & Compatibility:Mounts in a board rack, connecting to the backplane via a 128-pin, 4-row DIN connector, can be attached to/detached from the EISB model, offering configuration flexibility.

4.DSP Capabilities:Operates at 60 MHz, enabling fast real-time handling of complex mathematical operations. Optimized for signal processing tasks (filtering, modulation, etc.) with dedicated ALUs and MACs for efficient multiply-accumulate operations.

5.Memory & Hardware: Integrates Flash, NVRAM, RAM, and Add-Only memory; includes standard components like stack overflow (INT0), inner loop load pulse (INT1), and two configurable inputs (INT2/INT3).
