GE IS220PAICH2A Analog I/O Module for Mark VI Turbine Control
| Place of Origin | USA |
|---|---|
| Μάρκα | GE |
| Πιστοποίηση | COO |
| Model Number | IS220PAICH2A |
| Minimum Order Quantity | 1 |
| Τιμή | $3500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Name | GE IS220PAICH2A Analog I/O Module | Product ID | IS220PAICH2A |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Depth/Length | 330mm |
| Επισημαίνω | GE Mark VI turbine control module,analog I/O module for turbines,GE IS220PAICH2A control module |
||
Περιγραφή προϊόντων
GE IS220PAICH2A Analog I/O Module
| Attribute | Value |
|---|---|
| Name | GE IS220PAICH2A Analog I/O Module |
| Product ID | IS220PAICH2A |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
Product Description

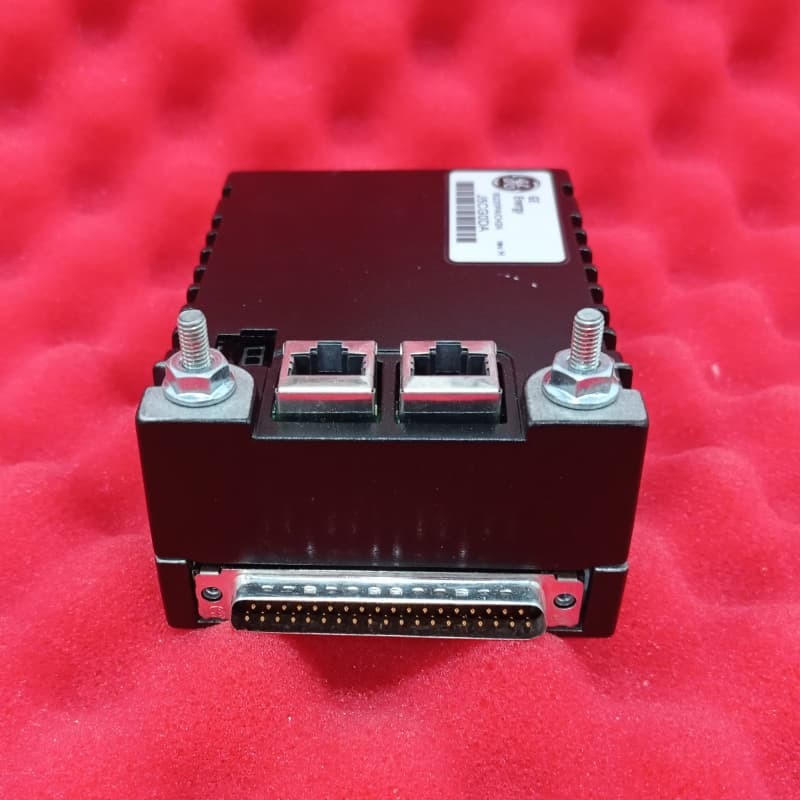

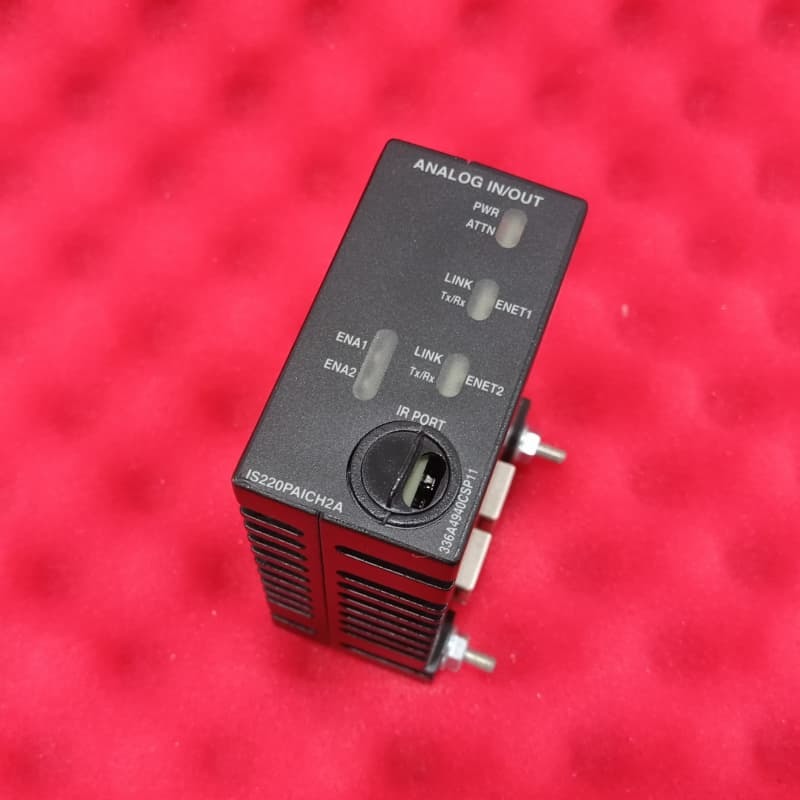

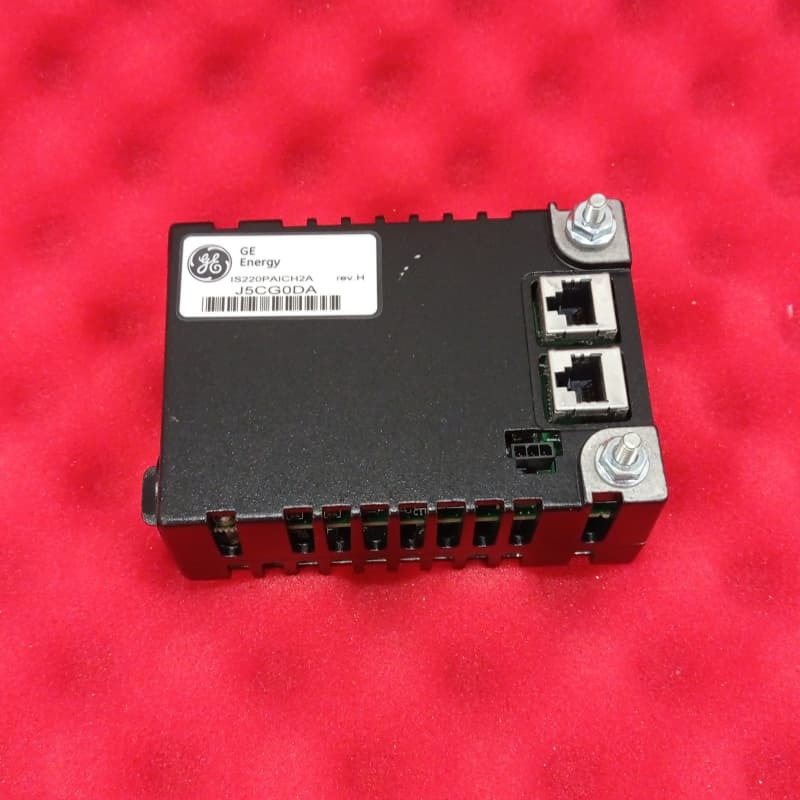

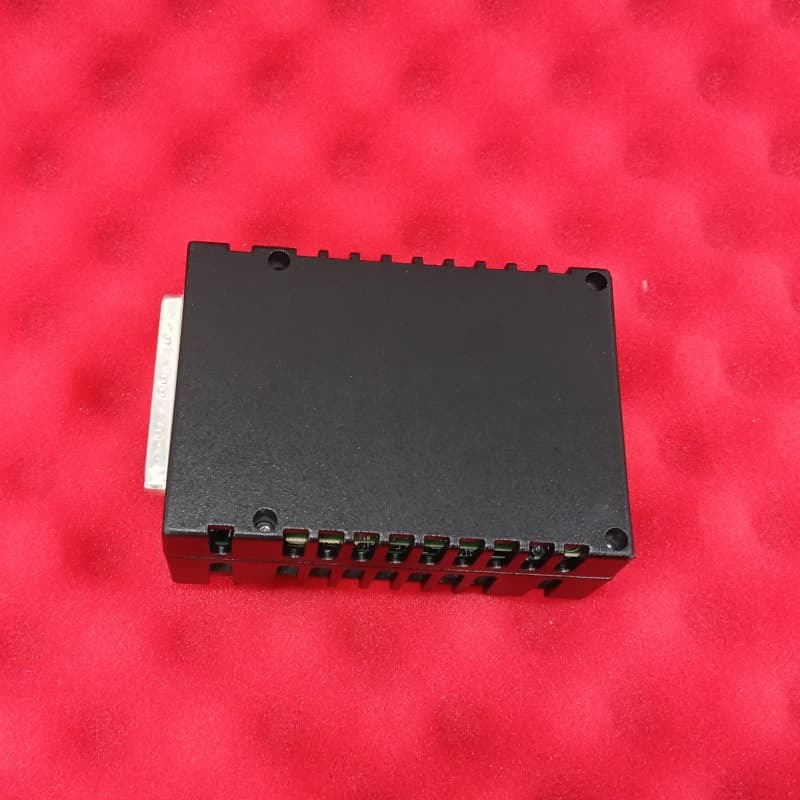

The GE IS220PAICH2A is an Analog I/O Module, a key component of GE's Mark VIe Speedtronic control system, designed as a direct electrical interface between analog field devices and control networks. It connects to terminal boards via a DC-37 pin connector, supporting both simplex operation with one I/O pack and TMR-capable setups using terminal boards with three DC-37 connectors. Equipped with a BPPx processor and dedicated acquisition board, it facilitates data exchange between analog sensors/actuators and controllers via dual RJ-45 Ethernet ports, with power supplied through a three-pin connector. LED indicators provide visual diagnostic feedback for easy monitoring.
Key Features
- Analog I/O Flexibility: Offers 10 analog inputs and 2 current outputs.
- Direct Terminal Integration: Connects to simplex or TMR terminal boards via DC-37 pin connectors, with load resistors for current loops located on the terminal board for accurate sensing.
- Dual Ethernet Connectivity: Uses dual RJ-45 ports for redundant communication with controllers, enhancing network reliability; supports connection to R controller networks.
- Easy Installation: Mounts directly to terminal boards with threaded studs, minimizing mechanical stress on connectors; features soft-start capability for safe hot-plugging without power disconnection.
- Enhanced Output Capability: Includes an add-on daughterboard enabling 0-200mA output on the first channel, with variable voltage power to reduce transistor power dissipation.
- Diagnostic Support: LED indicators provide real-time status updates, aiding quick troubleshooting and system maintenance.
