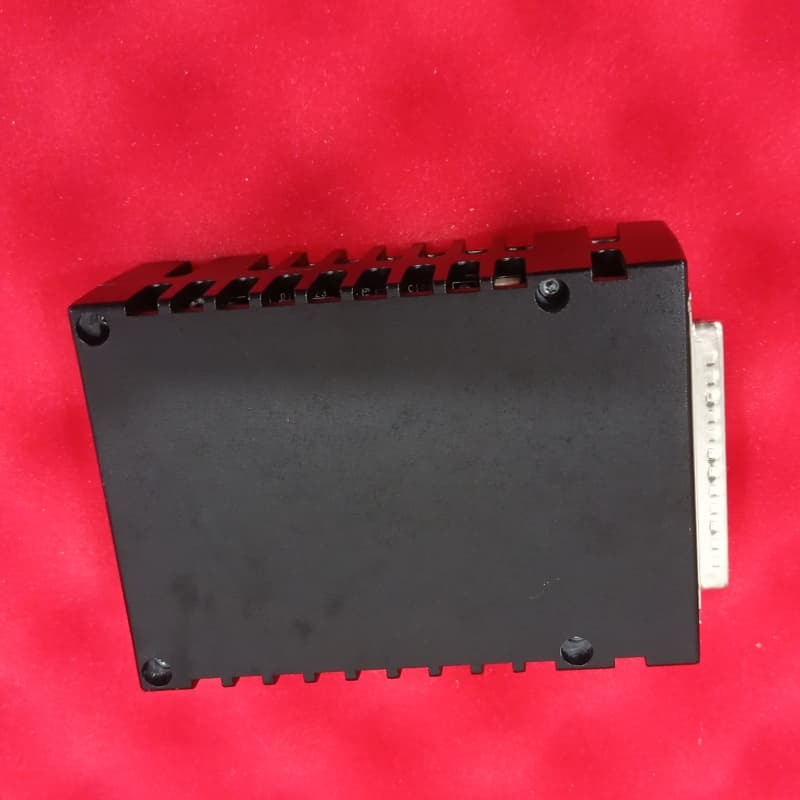

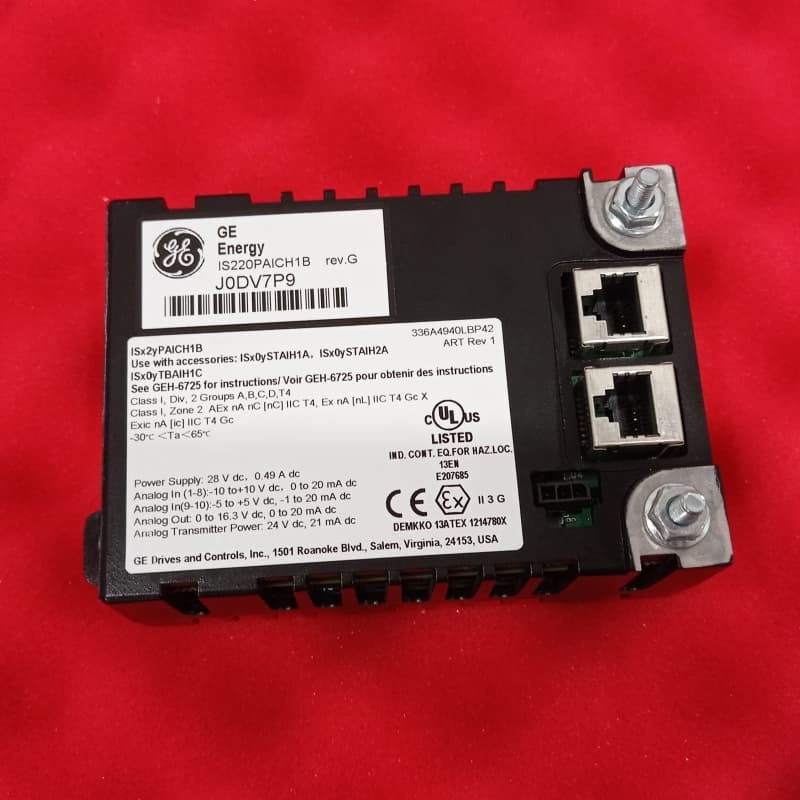

GE IS220PAICH1B Analog I/O Module for Mark VIe Turbine Control
| Place of Origin | USA |
|---|---|
| Μάρκα | GE |
| Πιστοποίηση | COO |
| Model Number | IS220PAOCH1B |
| Minimum Order Quantity | 1 |
| Τιμή | $7000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Name | GE IS220PAICH1B Analog Input/Output Module | Product ID | IS220PAOCH1B |
|---|---|---|---|
| Series | Mark VIe | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Width | 100mm |
| Product Net Height | 200mm | Product Net Depth/Length | 330mm |
| Επισημαίνω | GE Mark VIe turbine analog I/O module,GE IS220PAICH1B control module,turbine control analog input module |
||
Περιγραφή προϊόντων
GE IS220PAICH1B Analog Input/Output Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PAICH1B Analog Input/Output Module |
| Product ID | IS220PAOCH1B |
| Series | Mark VIe |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Dimensions (W x H x D) | 100mm × 200mm × 330mm |
Product Overview
The GE IS220PAICH1B is an Analog I/O Pack from the Mark VIe series, serving as a critical electrical interface between 1-2 I/O Ethernet networks and analog input terminal boards. It integrates a shared processor board and a dedicated analog input acquisition board, handling 10 analog inputs and 2 analog outputs.
Key Features
- Flexible I/O Configuration: 10 analog inputs (Channels 1-8 configurable as 5V/10V or 0-20mA; Channels 9-10 as 1mA or 0-20mA) and 2 analog outputs with 18V compliance in simplex/TMR modes
- Processor & Auto-Reconfiguration: Features soft-start circuit for sequential power-up and self-test routines with plug-and-play replacement capability
- Advanced Analog Hardware: 16-bit ADC with multiplexing and gain options for inputs; 14-bit DACs, current regulators, and mechanical relays for outputs
- High Performance: 5ms normal scan time, 16-bit conversion resolution, and 5.3W typical power consumption
- TMR Compatibility: Output relays isolate failed channels for uninterrupted operation in TMR systems

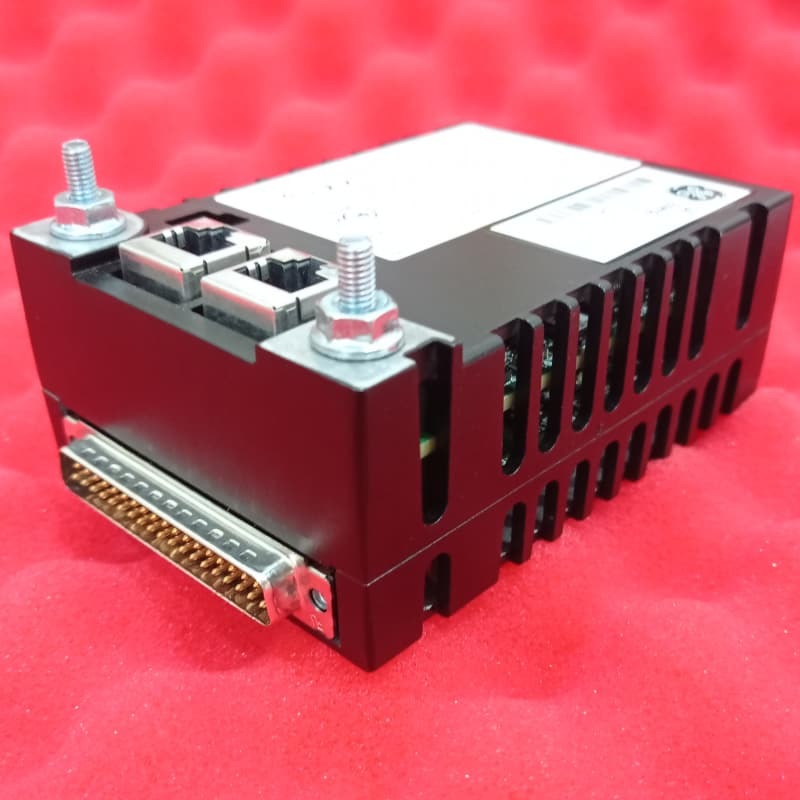

- Connectivity: Power via 3-pin connector, data transmission through dual RJ45 Ethernet ports and DC-37 pin connector

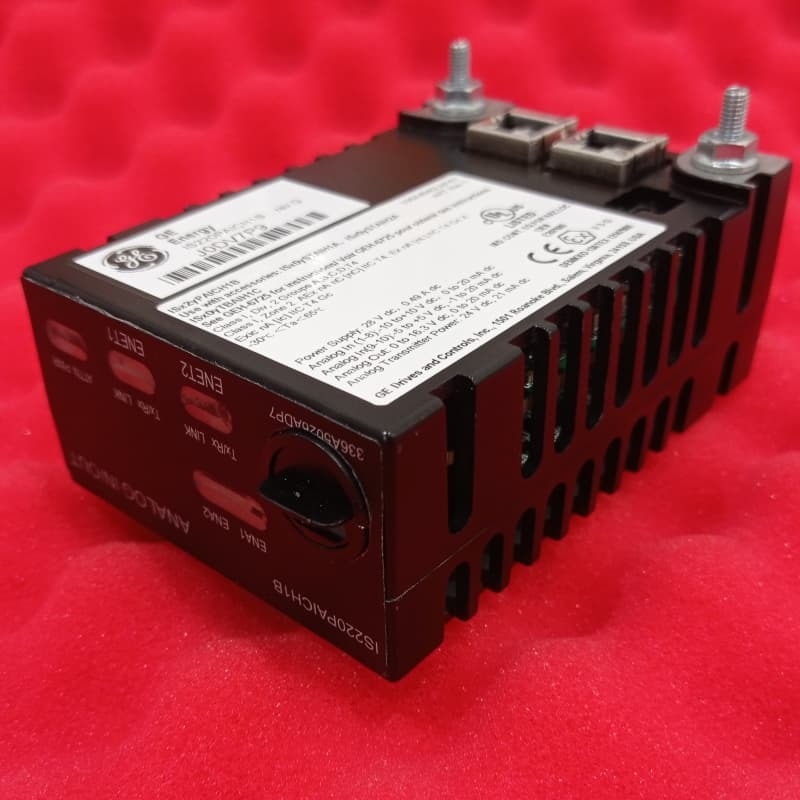

- Diagnostic Capabilities: LED indicators provide visual feedback for operational status
